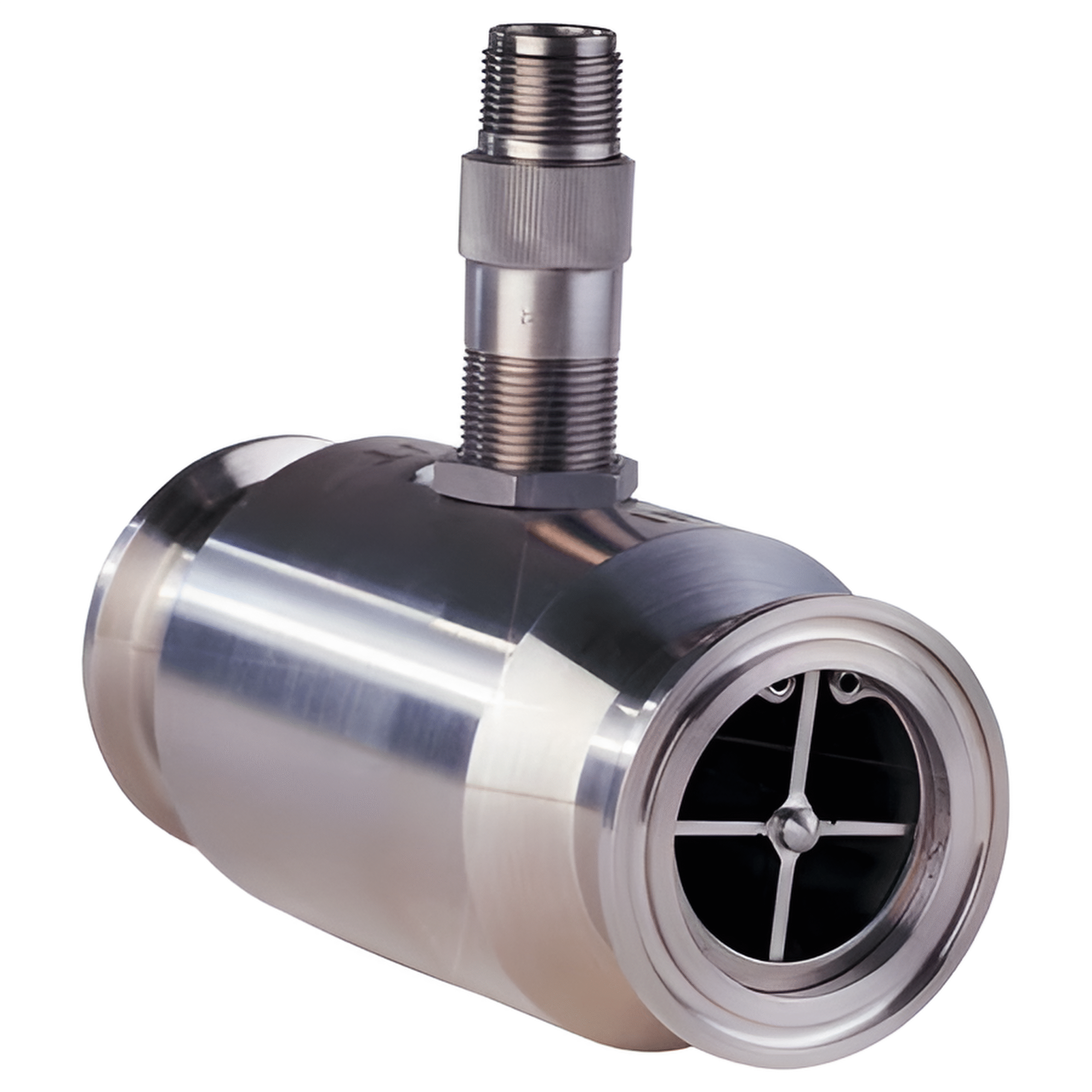

Turbine flow meters are velocity-type flow measurement instruments designed for accurate and repeatable measurement of clean, low-viscosity liquids. These meters operate by utilizing a precision turbine rotor installed in the flow path, which rotates proportionally to the velocity of the liquid passing through the meter.
As the fluid flows through the turbine flow meter, the rotating turbine blades generate electrical pulses that are detected by a magnetic or electronic sensor. These pulses are converted into flow rate and totalized flow readings, providing reliable measurement for continuous and batch process applications.
Turbine flow meters are widely used in water, fuel, chemical, beverage, pharmaceutical, and industrial utility systems, where high accuracy and fast response time are required.
Key Features
- High accuracy for clean and low-viscosity liquids
- Fast response and repeatable measurement
- Compact and robust design
- Suitable for continuous and batch flow measurement
- Available with local display and electronic transmitters
- Compatible with digital and analog output signals
- Long service life under stable process conditions
Typical Applications
- Water and utility systems
- Fuel, oil, and solvent measurement
- Chemical dosing and transfer
- Beverage and clean liquid processing
- Pharmaceutical and laboratory applications
- Hydraulic and industrial process lines
Construction & Options
- Body material: Stainless Steel / Aluminum (model dependent)
- Turbine material: Stainless steel
- Connection types: Threaded, Flanged, or Sanitary Clamp
- Output signals: Pulse, 4–20 mA, Digital (Modbus optional)
- Display: Local LCD / Remote transmitter (optional)
- Installation: Horizontal or vertical (with straight pipe length)
Advantages
- High measurement accuracy for clean fluids
- Cost-effective solution for liquid flow measurement
- Simple operating principle
- Suitable for moderate pressure and temperature ranges
Limitations
- Requires clean, particle-free liquids
- Not suitable for viscous, slurry, or solids-laden fluids
- Requires straight pipe lengths for best accuracy
Turbine flow meters provide a reliable and economical flow measurement solution for applications involving clean liquids where accuracy, responsiveness, and operational stability are essential.
