Hydraulic, Instrumentation & Tube Accessories
Our range of instrumentation and tube accessories is designed for precise flow control, pressure measurement protection, secure tube connections, and reliable pipe support in industrial and utility applications. Manufactured from high-quality materials, these products ensure durability, safety, and long service life in demanding operating environments.

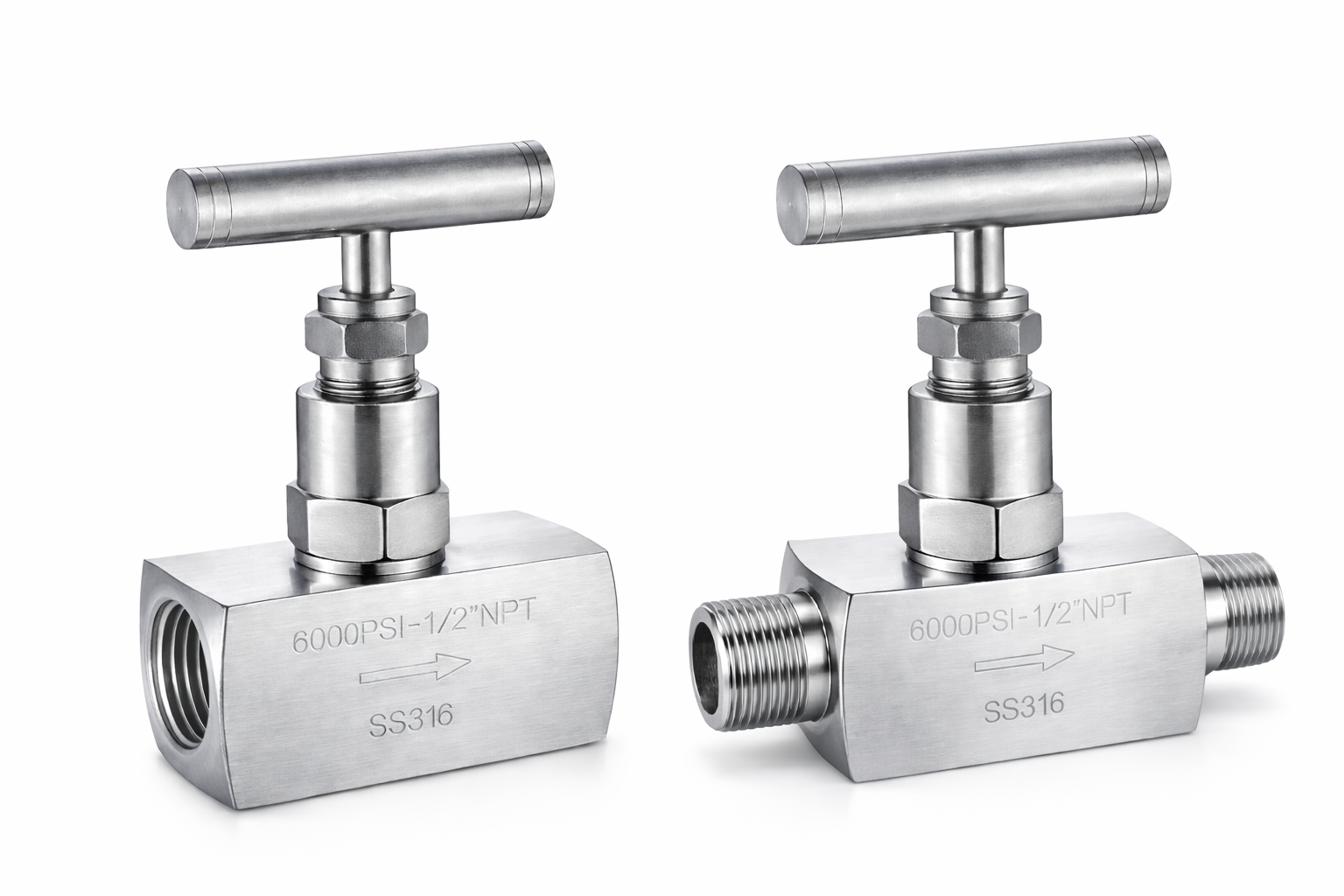

Stainless Steel Needle Valves
Stainless steel needle valves are used for accurate flow regulation and isolation of liquids and gases in instrumentation and process systems. The compact design, combined with a precision-machined stem and T-type handle, allows fine control and smooth operation. These valves are suitable for both male and female threaded connections, as commonly required in industrial instrumentation layouts.
Technical Overview
- Material: SS316
- Pressure Rating: Up to 6000 PSI
- Connection Type: Female NPT / Male NPT
- Port Size: 1/4″, 3/8″, 1/2″
- Operation: Manual (T-handle)
- Design: Straight pattern
- Finish: Matte / industrial stainless steel finish
Typical Applications
- Instrumentation panels
- Pressure gauge isolation
- Sampling and vent lines
- Oil & gas and chemical industries
- Industrial process control systems

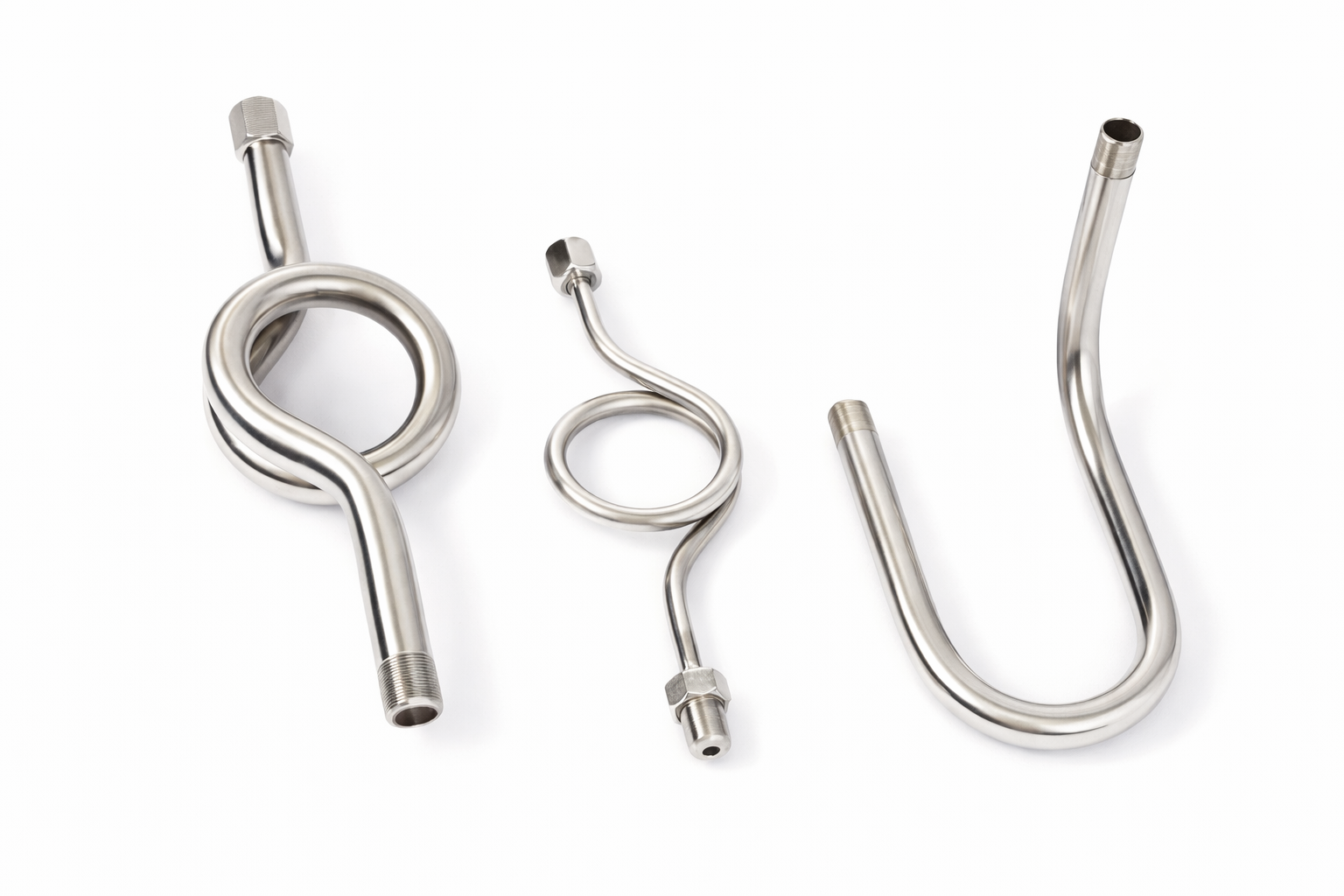

Stainless Steel Pressure Gauge Syphons
Stainless steel pressure gauge syphons are designed to protect pressure gauges from high temperature, steam, and pressure pulsations. The coiled and U-type configurations reduce heat transfer and absorb pressure surges, significantly extending the service life of pressure gauges in demanding applications.
Technical Overview
- Material: SS304 / SS316
- Types: Coil type / Mini coil / U-type
- Connection: Male / Female threaded ends
- Thread Standard: BSP / NPT
- Temperature Resistance: Suitable for steam and hot media
- Function: Heat dissipation and pressure surge protection
- Finish: Smooth stainless steel surface
Typical Applications
- Steam pressure measurement
- Boilers and heat exchangers
- Process pipelines
- Power plants
- Industrial instrumentation systems
Stainless Steel Compression Tube Fittings (Double Ferrule Type)
Stainless steel compression tube fittings provide leak-proof and vibration-resistant connections for precision instrumentation and hydraulic systems. The double ferrule design ensures strong tube gripping, reliable sealing, and long-term performance even under high-pressure conditions.
Technical Overview
- Material: SS316
- Design: Double ferrule compression type
- Tube Sizes: 1/8″ to 1″
- Connection Types:
- Tube to tube
- Tube to male thread
- Tube to female thread
- Thread Standard: NPT / BSP / Metric
- Pressure Rating: High-pressure instrumentation service
- Finish: Clean machined stainless steel finish
Typical Applications
- Instrumentation tubing systems
- Hydraulic and pneumatic lines
- Gas distribution networks
- Chemical and petrochemical plants
- Control panels and analyzers

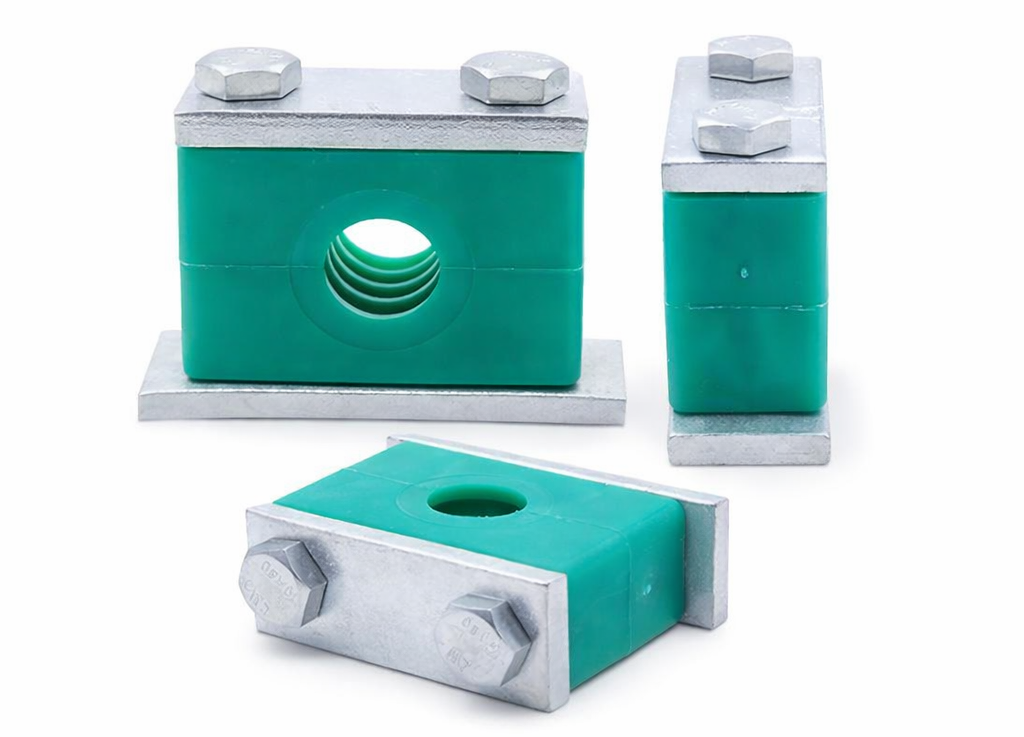

Hydraulic Tube Clamps
Hydraulic tube clamps are used to secure pipes, tubes, and hoses, minimizing vibration and mechanical stress in fluid power and instrumentation systems. The clamp design ensures proper alignment, improved safety, and long-term stability of piping installations.
Technical Overview
- Clamp Body Material: Polypropylene (Green)
- Plate & Hardware: Galvanized steel
- Pipe Size Range: As per clamp series
- Mounting Type: Single or double clamp mounting
- Function: Pipe support and vibration damping
- Installation: Bolt-mounted
- Application Type: Hydraulic and instrumentation piping
Typical Applications
- Hydraulic piping systems
- Instrumentation lines
- Industrial machinery
- Power and utility installations
- Oil & gas and manufacturing plants
